“Conscious collection and storage of rainwater to cater to demands of water, forv drinking, domestic purpose and irrigation is termed as Rainwater Harvesting.”

The term rainwater harvesting is being frequently used these days, however, the concept of water harvesting is not new for India. Water harvesting techniques had been evolved and developed centuries ago. An old technology is gaining popularity in a new way. Rain water harvesting is enjoying a renaissance of sorts in the world, but it traces its history to biblical times. Extensive rain water harvesting apparatus existed 4000 years ago in the Palestine and Greece. In ancient Rome, residences were built with individual cisterns and paved courtyards to capture rain water to augment water from city’s aqueducts. As early as the third millennium BC, farming communities in Baluchistan and Kutch impounded rain water and used it for irrigation dams.

Why rain water harvesting?

Rain water harvesting is essential because surface water is inadequate to meet our demand and we have to depend on ground water. Due to rapid urbanization, infiltration of rain water into the sub-soil has decreased drastically and recharging of ground water has diminished.As you read this guide, seriously consider conserving water by harvesting and managing this natural resource by artificially recharging the system.
The examples covering several dozen installations successfully operating in India constructed and maintained by CGWB, provide an excellent snapshot of current systems.

How to harvest rainwater?

Broadly there are two ways of harvesting rainwater:
(i) Surface runoff harvesting
(ii) Roof top rainwater harvesting

Surface runoff harvesting

In urban area rainwater flows away as surface runoff. This runoff could be caught and used for recharging aquifers by adopting appropriate methods.

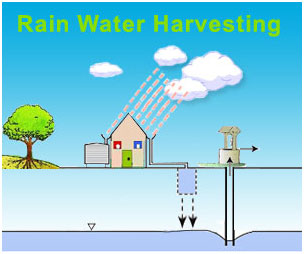

Roof top rainwater harvesting(RTRWH) It is a system of catching rainwater where it falls. In rooftop harvesting, the roof becomes the catchments, and the rainwater is collected from the roof of the house/building. It can either be stored in a tank or diverted to artificial recharge system. This method is less expensive and very effective and if implemented properly helps in augmenting the ground water level of the area.

Advantages of rainwater harvesting

• Makes use of a natural resource and reduces flooding, storm water runoff, erosion, and contamination of surface water with pesticides, sediment, metals, and fertilizers.
• Reduces the need for imported water (the San Diego region imports between 80%-90% of its water from Northern California and Colorado River).
• Excellent source of water for landscape irrigation, with no chemicals such as fluoride and chlorine, and no dissolved salts and minerals from the soil.
• Home systems can be relatively simple to install and operate May reduce your water bill.
• Promotes both water and energy conservation.
• No filtration system required for landscape irrigation.

Disadvantages of rainwater harvesting

• Limited and uncertain local rainfall.
• Can be costly to install – rainwater storage and delivery systems can cost between $200 to $2,000+ depending on the size and sophistication of the system.
• The payback period varies depending on the size of storage and complexity of the system.
• Can take considerable amount of time to “pay for itself”.
• Requires some technical skills to install and provide regular maintenance.
• If not installed correctly, may attract mosquitoes (i.e.; West Nile Disease and other waterborne illnesses).
• Certain roof types may seep chemicals, pesticides, and other pollutants into the water that can harm the plants.
• Rainwater collected during the first rain season is generally not needed by plants until the dry season Once catchment is full, cannot take advantage of future rains.

Rain Water Harvesting

Broadly there are two ways of harvesting rainwater, namely; surface runoff harvesting and rooftop rainwater harvesting. Rainwater harvesting is the collection and storage of rain for reuse on-site, rather than allowing it to run off. The stored water is used for various purposes, such as gardening, irrigation, etc. This article discusses multiple methods of rainwater harvesting.

Methods of Rainwater Harvesting:

1. Surface Runoff Harvesting

In urban areas, rainwater flows away as surface runoff. This runoff can be caught and used for recharging aquifers by adopting appropriate methods.

2. Rooftop Rainwater Harvesting>

It is a system of catching rainwater where it falls. In rooftop harvesting, the roof becomes the catchment, and the rainwater is collected from the roof of the house/building.

It can either be stored in a tank or diverted to an artificial recharge system. This method is less expensive and very useful and, if implemented correctly, helps in augmenting the groundwater level of the area.

Components of the Rooftop Rainwater Harvesting

The illustrative design of the essential components of the rooftop rainwater harvesting system is given in the typical schematic diagram. The system mainly constitutes of following sub-components:

1. Catchment

The surface that receives rainfall directly is the catchment of rainwater harvesting system. It may be a terrace, courtyard, or paved or unpaved open ground. The terrace may be a flat RCC/stone roof or sloping roof. Therefore the catchment is the area, which actually contributes rainwater to the harvesting system.

2. Transportation

Rainwater from the rooftop should be carried through down to take water pipes or drains to the storage/harvesting system. Water pipes should be UV resistant (ISI HDPE/PVC pipes) of the required capacity.

Water from sloping roofs could be caught through gutters and down take the pipe. At terraces, the mouth of each drain should have wire mesh to restrict floating material.

3. First Flush

The first flush is a device used to flush off the water received in the first shower. The first shower of rains needs to be flushed-off to avoid contaminating storable/rechargeable water by the probable contaminants of the atmosphere and the catchment roof. It will also help in cleaning of silt and other material deposited on the roof during dry seasons. Provisions of first rain separators should be made at the outlet of each drainpipe.

4. Filter

There is always some skepticism regarding Roof Top Rainwater Harvesting since doubts are raised that rainwater may contaminate groundwater. There is a remote possibility of this fear coming true if the proper filter mechanism is not adopted. Secondly, all care must be taken to see that underground sewer drains are not punctured, and no leakage is taking place in close vicinity. Filters are used for the treatment of water to effectively remove turbidity, color, and microorganisms. After the first flushing of rainfall, water should pass through filters. A gravel, sand, and ‘netlon’ mesh filter is designed and placed on top of the storage tank. This filter is very important in keeping the rainwater in the storage tank clean. It removes silt, dust, leaves, and other organic matter from entering the storage tank. The filter media should be cleaned daily after every rainfall event. Clogged filters prevent rainwater from easily entering the storage tank and the filter may overflow. The sand or gravel media should be taken out and washed before it is replaced in the filter. A typical photograph of filter

Types of Filter

1. Sand Gravel Filter

These are commonly used filters, constructed by brick masonry and filleted by pebbles, gravel, and sand. Each layer should be separated by wire mesh.

2. Charcoal Filter

Charcoal filters can be made in-situ or in a drum. Pebbles, gravel, sand, and charcoal as shown in the figure should fill the drum or chamber. Each layer should be separated by wire mesh. The thin layer of charcoal is used to absorb odor if any.

3. PVC –Pipe filter

This filter can be made by PVC pipe of 1 to 1.20 m length; Diameter of pipe depends on the area of roof. Six inches dia. pipe is enough for a 1500 Sq. Ft. roof and 8 inches dia. pipe should be used for roofs more than 1500 Sq. Ft. Pipe is divided into three compartments by wire mesh. Each component should be filled with gravel and sand alternatively as shown in the figure. A layer of charcoal could also be inserted between two layers. Both ends of the filter should have a reduction of the required size to connect the inlet and outlet. This filter could be placed horizontally or vertically in the system. A schematic pipe filter

4. Sponge Filter

It is a simple filter made from PVC drum having a layer of sponge in the middle of drum. It is the easiest and cheapest form filter, suitable for residential units. A typical figure of sponge filter

Methods of Rooftop Rainwater Harvesting

Various methods of using roof top rainwater harvesting are illustrated in this section.

1. Storage of Direct Use

In this method, rainwater collected from the roof of the building is diverted to a storage tank. The storage tank has to be designed according to the water requirements, rainfall, and catchment availability. Each drainpipe should have a mesh filter at the mouth and first flush device followed by a filtration system before connecting to the storage tank. Each tank should have an excess water overflow system. Excess water could be diverted to the recharge system. Water from storage tanks can be used for secondary purposes such as washing and gardening etc. This is the most cost-effective way of rainwater harvesting. The main advantage of collecting and using rainwater during the rainy season is not only to save water from conventional sources but also to save energy incurred on transportation and distribution of water at the doorstep. This also conserves groundwater, if it is being extracted to meet the demand when rains are on typical storage tank.

2. Recharging Groundwater Aquifers

Groundwater aquifers can be recharged by various kinds of structures to ensure the percolation of rainwater in the ground instead of draining away from the surface. Commonly used recharging methods are:-

• Recharging of bore wells
• Recharging of dug wells.
• Recharge pits
• Recharge Trenches
• Soakaways or Recharge Shafts
• Percolation Tanks

3. Recharging of Bore Wells

Rainwater collected from the rooftop of the building is diverted through drainpipes to settlement or filtration tank. After settlement, filtered water is diverted to bore wells to recharge deep aquifers. Abandoned bore wells can also be used for recharge. Optimum capacity of the settlement tank/filtration tank can be designed based on the area of catchment, intensity of rainfall, and recharge rate. While recharging, entry of floating matter and silt should be restricted because it may clog the recharge structure. The first one or two showers should be flushed out through rain separator to avoid contamination.

4. Recharge Pits

Recharge pits are small pits of any shape rectangular, square, or circular contracted with brick or stone masonry wall with weep hole at regular intervals. Top of the pit can be covered with perforated covers. The bottom of the pit should be filled with filter media. The capacity of the pit can be designed based on the catchment area, rainfall intensity, and recharge rate of the soil. Usually, the dimensions of the pit may be of 1 to 2 m width and 2 to 3 m deep, depending on the depth of previous strata. These pits are suitable for recharging of shallow aquifers, and small houses. A schematic diagram of the recharge pit.
